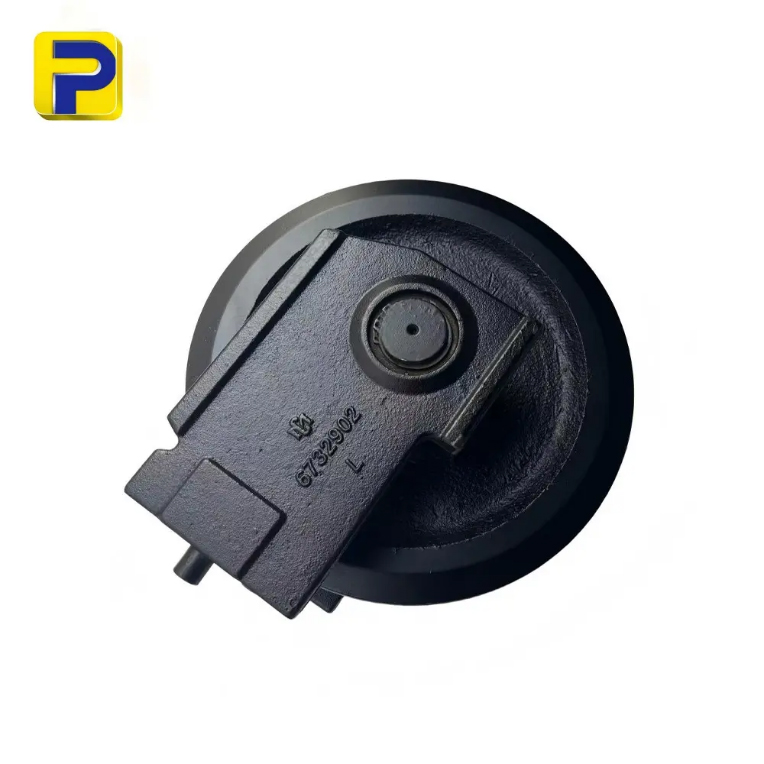

The main function of Idler

The guide wheel of a mini excavator is a core component of the crawler walking system, primarily responsible for guiding the crawler track, adjusting track tension, bearing shock absorption, and preventing deviation and derailment, ensuring stable movement and track longevity. Below is a detailed explanation:
Core Function
Guidance for preventing deviation and derailment: The guide wheel is typically installed at the front end of the track, featuring flanges on both sides to ensure precise engagement with the track links. It forcibly directs the track to follow the predetermined path, preventing misalignment or detachment during movement or steering, which is particularly critical when operating in confined spaces or complex terrains.
Track tension adjustment: In conjunction with the tensioning device (e.g., hydraulic cylinder + spring), the track tension is adjusted by moving the guide wheel forward or backward. When the track is slack, push it forward to tighten, ensuring the track remains in contact with the drive wheel and idler. In case of obstacles, slight displacement can buffer the impact, preventing damage to components.
Load-bearing and cushioning: It supports a portion of the vehicle’s weight and works in conjunction with the idler wheels to distribute ground pressure. The curved surface of the wheel and the tensioning mechanism absorb ground impacts, protecting the tracks, walking mechanism, and vehicle body while enhancing operational comfort.
Reduce friction wear: The smooth wheel surface and built-in high-precision bearings enable flexible rotation, significantly reducing friction with the track. This minimizes wear on components such as the track shoes and pins, extending the lifespan of both the track and the guide wheel.
Adaptation features of mini excavators
Compact and lightweight, the guide wheel requires a more compact structure and precise tension control to meet the flexible steering demands of operations in confined spaces.
Commonly used in municipal, landscaping, and indoor precision applications, the derailment prevention and low-wear design of the guide wheel reduces malfunctions, enhancing operational efficiency and reliability.
